| 夾緊力kN |
| 扭矩Nm |

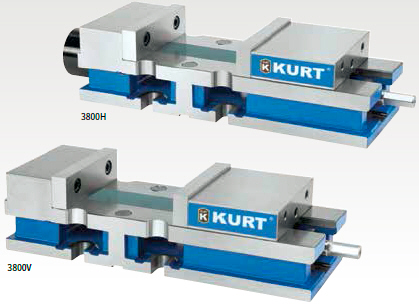

3800V |
| 14 |
2.8 |
| 27 |
4.4 |
| 41 |
7.2 |
| 54 |
9.0 |
| 68 |
11.7 |
| 81 |
15.3 |
| 95 |
18.0 |
| 108 |
22.7 |
| 122 |
27.4 |
| 136 |
29.1 |
|
|
| 夾緊力kN |
| 液壓MPa |
3800H |
| 3.4 |
6.7 |
| 6.9 |
13.3 |
| 10.3 |
20.0 |
| 13.8 |
26.7 |
| 17.2 |
33.4 |
| 20.7 |
40.0 |
| 22.1 |
48.9 |
液壓排量
29.8CC |
|
|
| 參數(shù)表 mm(in) |
|
3800V |
3800H |
| B |
203.20 |
203.20 |
| C |
558.80 |
558.80 |
| D |
122.22 |
122.22 |
| E |
20.65 |
20.65 |
| F |
49.91 |
49.91 |
| G |
88.90 |
88.90 |
| H |
355.60 |
355.60 |
| J |
27.31 |
27.31 |
| K |
152.40 |
152.40 |
| L |
58.55 |
58.55 |
| M |
151.21 |
151.21 |
| N |
30.99 |
30.99 |
| O |
120.65 |
120.65 |
| P |
(5/8-11) |
(5/8-11) |
| Q |
300.00 |
300.00 |
| R |
12.70 |
12.70 |
| S |
101.60 |
101.60 |
| T |
16.00 |
16.00 |
| U |
23.55 |
23.55 |
| V |
50.80 |
50.80 |
| W |
(7/8) |
(7/8) |
| X |
216.69 |
216.69 |
| Y |
100.00 |
100.00 |
| Z |
203.20 |
203.20 |

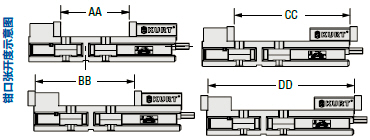

| AA |
260.35 |
260.35 |
| BB |
376.56 |
376.56 |
| CC |
440.06 |
440.06 |
| DD |
556.26 |
556.26 |
| EE |
- |
75.74 |
| FF |
- |
50.80 |
| GG |
- |
95.25 |
| HH |
55.88 |
55.88 |
| MM |
76.20 |
76.20 |
| NN |
10.34 |
10.34 |
| OO |
15.875 |
15.875 |
| PP |
20.07 |
20.07 |
| QQ |
15.88 |
15.88 |
| RR |
12.70 |
12.70 |
| 重量 |
67kg |
70kg |
|
